Cov Khoom Siv Txheem:1, cov qauv ram qauv; 2. Plaub-ceev stepless ceev hloov, lub cev muaj zog 30kW servo lub cev muaj zog;
Cov Khoom Siv Xaiv:1, Siemens 828D CNC system 2, 4-chaw nres tsheb thiab 6-chaw nres tsheb fais rooj khoom 3, ib nrab tiv thaiv 4, Hla Kev Tiv Thaiv Hlau Dawb 5, nti tshem tawm, cua txias |
|
Ntsug cnc tshuab dhos tshuab ua kom huv:

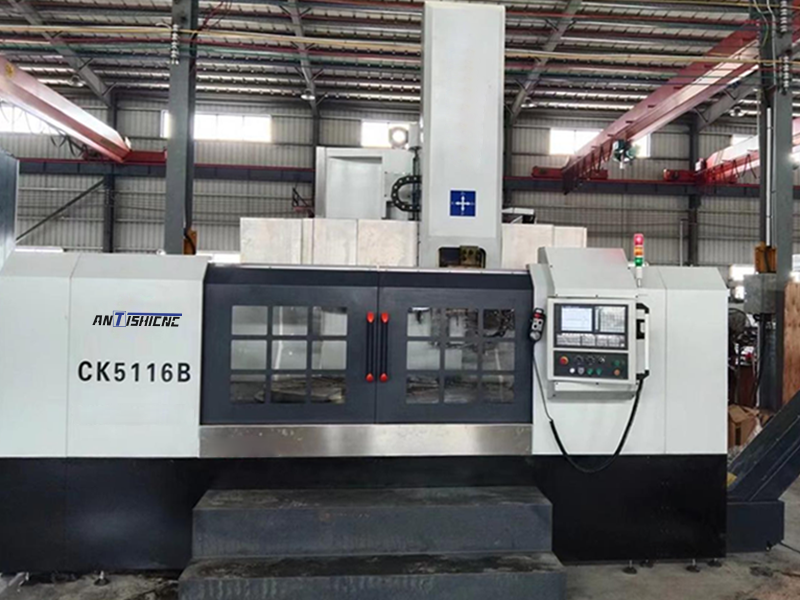

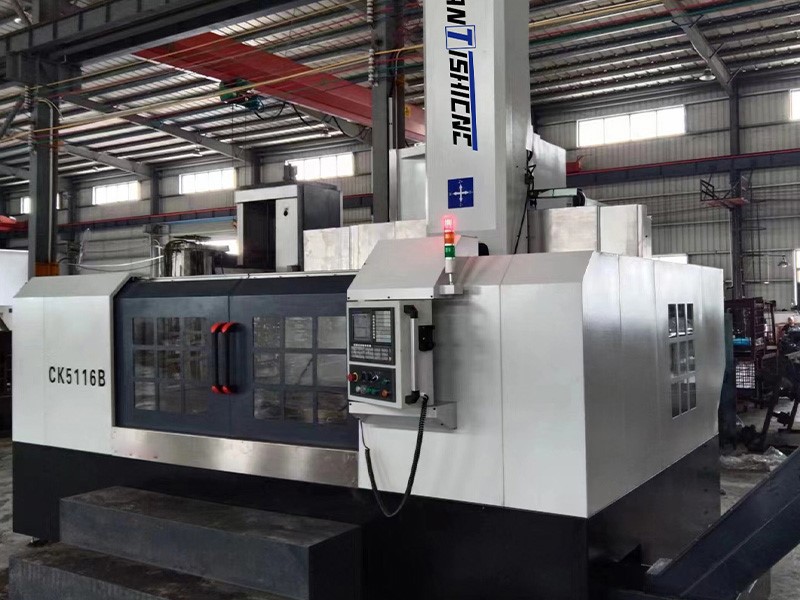

Lub CK511B ntsug cnc kws dhos tshuab yog tsim rau high-zog thiab loj-li -iam ua hauj lwm. Nws sib xyaw ua ke cov qauv muaj zog thiab qib siab siab. Nws yog dav siv nyob rau hauv Aerospace, cov khoom siv hluav taws xob, thauj khoom, nkoj thauj khoom thiab lwm yam kev lag luam kom tau raws li cov khoom loj.
Cov tshuab no adopts Siemens 828D CNC system, txhawb xz ob-axis txuas kev tswj, thiab ua tau zoo thiab ruaj khov ua ke. Qhov siab tshaj plaws tej txoj kab uas hla ntawm cov khoom tuaj yeem ncav cuag 1600 hli, qhov siab tshaj plaws ua haujlwm siab yog 1200mm, qhov haum tshaj plaws yog 12 tons, thiab cov khoom siv ua haujlwm siab tshaj plaws yog 1200 thiab cov khoom lag luam loj heev. Tus neeg ua haujlwm adopts Adopts plaub-ceev stepless kev cai tsim, nrog nrawm ntawm 1-160 R / min thiab qhov ua tau yooj yim siv tau muaj zog thiab hnyav-thauj kev txiav.
Qhov siab tshaj plaws kev txiav txim siab ntawm cov khoom siv tau yog 22Kn, nrog rau tus mob stepless ua haujlwm, pub ceev ntawm 1-2000mm / rigidity precision txiav tuaj yeem ua tiav. Hais txog ntawm Ram stroke, kev sib cav sib cav yog 9,20mm, tus ntoo khaub ncaws ntsug yog li 840 hli, thiab kev sib tw ua kom tiav thiab hloov kho tau.
Lub tshuab txiav kom ntsug ceev tshuab tag nrho cov cuab yeej tsim muaj qhov tseeb yog 0.03mm, ua kom muaj qhov tseeb thiab cov qauv raug ntawm txhua qhov chaw ua haujlwm ruaj khov thiab xwm yeem. Lub tshuab nqus tag nrho txog 14 tons thiab yog nruab nrog 30kw servo lub cev muaj zog rau kev txuas ntxiv thiab ua haujlwm siab.
CK511B ntsug cnc kws kathing cnc kws kathing tshuab yog koj qhov kev xaiv zoo tshaj plaws rau kev ua lag luam zoo thiab kev lag luam zoo, kev sib tw zoo ntawm cov khoom loj.
Kev Lag Luam Kev Lag Luam
|
yam haujlwm |
Cov lus qhia Ck511b |
ib yam |
|
|
Ntau tshaj plaws tej txoj kab uas hla ntawm cov cuab yeej nrog |
1600 |
lub hli |
|
|
Workbench Devere |
1400 |
lub hli |
|
|
Qhov siab tshaj plaws ntawm workpiece |
1200 |
lub hli |
|
|
Siab tshaj plaws workpiece hnyav |
5 |
t |
|
|
Kev ua haujlwm ua haujlwm |
1-160 |
r / min |
|
|
Kev ua haujlwm qib nrawm |
Plaub- Kev ceev tsis kawg |
||
|
Siab tshaj Torque ntawm worktable |
25 |
Txhos caug kn / m |
|
|
Tuam Div Tes Khoom Qib |
Tsis muaj kauj ruam |
hom |
|
|
Qhov siab tshaj plaws txiav cov cuab yeej ntawm cov cuab yeej |
nees nkaum ob |
Txhos caug |
|
|
Tus txiv yaj |
Kab Rov Tav Mus Ncig |
920 |
lub hli |
|
Ntsug taug kev |
800 |
lub hli |
|
|
Kev Mus Ncig Hla |
850 |
lub hli |
|
|
Tuam Nrog Kev Noj Mov Noj |
1-2000 |
mm / min |
|
|
Beam Lifting Ceev |
440 |
mm / min |
|
|
Tuam bar bar hla-seem qhov ntev (ntev x dav) |
30×40 |
lub hli |
|
|
Lub cev muaj zog loj |
30 |
kw (servo) |
|
|
Lub Cev Muaj Zog |
Siemens 828D Siemens 828D |
||
|
CNC Koom tes ua hauj lwm Axis |
XZ Ob-Axis Linkage |
||
|
Tso rau qhov tseeb |
0.03mm |
||
|
Rov ua dua qhov tseeb |
0.015mm |
||
|
Ua cov raug loj |
Nws7 |
||
|
Tshuab luj (kwv yees kwv yees) |
14 |
t |
|
