Lub hauv paus rau phau ntawv

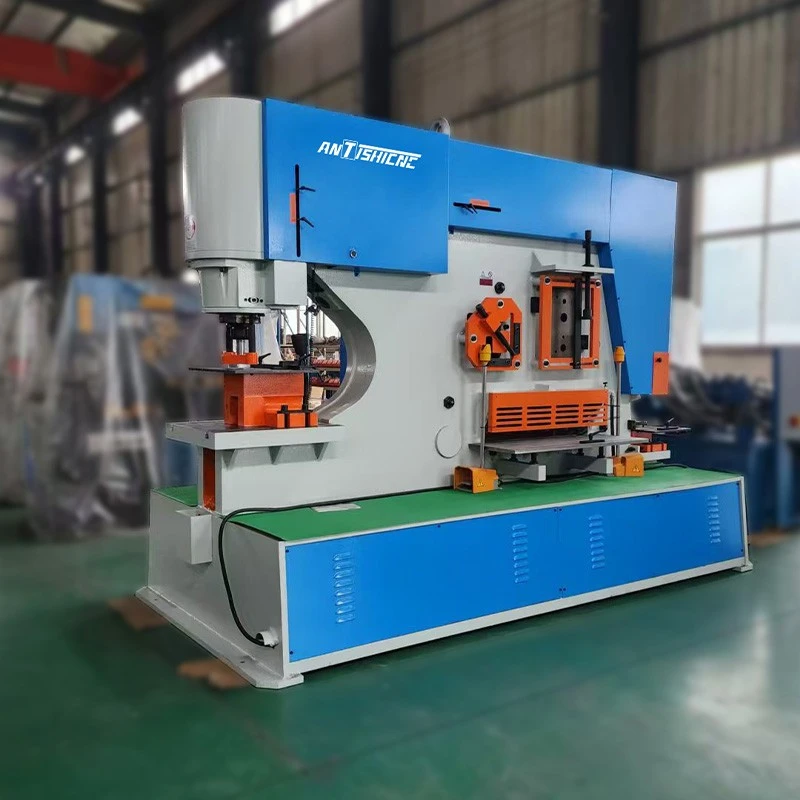

Tsim los rau versatility, Q35Y -50 55 Tuj ironworker muab cov haujlwm ua ntau rau hauv ib lub tshuab ntim khoom, suav nrog:
Puag ncig, square, thiab oblong qhov tuav tuav, cov phaj hlau, lub kaum sab xis steel, c-raws, thiab h-nqaj.
Cov kab tuav li 750 × 30 hli, lub kaum sab xis (90 lub hli), kab ntawv sib tw (320 × 20 hli), thiab i-nqaj (320 × 130 × 10 hli).
High-precision lub voos plaub (60 × 100 × 100 mm), txheem thiab loj v-tsis yog (txog 145 × 15 hli).
Ib Leeg Phooj Xovxwm Nres (250 × 24 mm), Ntau Vuam Nres (700 × 8 hli), thiab cov yeeb nkab sib koom tes rau ø100 hli tubing.
- Ua nrog Q345 steel thav duab, 55 tuj ironworker nta ib tug qauv kws tshaj lij uas muaj kev sib zog ua ke thiab kev co. Nws yog nruab nrog ob lub zog ua kom zoo nkauj hydraulic, kev tiv thaiv zoo tshaj plaws, thiab hluav taws xob tiv thaiv kev nyab xeeb nrog kev pib nres, txhim kho kev ua haujlwm kom ruaj ntseg thiab kev ua haujlwm. Cov khoom siv roj tsheb hydraulic thiab cov kab ke yog tsim hauv tsev kom paub tseeb kev tswj hwm zoo.
- Ntxiv cov neeg siv-tus phooj ywg zoo suav nrog lub teeb ua haujlwm nrog kev ua haujlwm, kev hloov kho kev hloov kho, ntsuas cov kheej kheej, thiab loj, kav lub rooj rau shearing thiab notching. Nrog 55 tuj ironworker tag nrho qhov ntev ntawm 3000 × kev ua haujlwm ntawm 18 kw, thiab kev ntseeg tau, thiab kev ua haujlwm rau hnyav ua haujlwm hlau cov ntaub ntawv kev cob qhia.
Cim npe nrov: 55 tuj ironworker, Suav 55 Tuj Ironworker Manufacturers, lwm tus neeg, Hoobkas
Chaw ua uas tsis tau haus
|
Hydraulic Ironworker Q35Y Series |
Q35Y-50 |
|
|
Tshum |
Siab (kn) |
2500 |
|
Caj pas tob (mm) |
600 |
|
|
Max. Mob stroke ntev |
80 |
|
|
Cycles / min. (20mm stroke) |
22 |
|
|
Punch muaj peev xwm (txoj kab uas hla x tuab) (hli) |
40 × 40 |
|
|
50 × 32 |
||
|
Ua haujlwm siab kom tuag |
1245 |
|
|
Ca shearing |
Tiaj tiaj bar shearing |
400 × 40 |
|
750 × 30 |
||
|
Hniav Ntev |
760 |
|
|
Lub kaum Flange Trim |
200 |
|
|
Ua Haujlwm Qhov Siab |
950 |
|
|
Lub kaum ntse ntse shearing |
Lub kaum sab xis steel ntawv (90 degree) (hli) |
200 × 200 × 20 |
|
Lub kaum sab xis steel ntawv (45 degree) (hli) |
120 × 120 × 10 |
|
|
Ua Haujlwm Qhov Siab |
1460 |
|
|
Bar shearing |
Roundsquarear bar shear (mm) |
80/65 |
|
Channel Hlau (hli) |
320 × 92 × 12 |
|
|
Kuv nqaj hlau (hli) |
320 × 130 × 10 |
|
|
Ua Haujlwm Qhov Siab |
1550 |
|
|
Tsis tseem ceeb |
Leeter (W × d × t) |
60 × 100 × 20 |
|
Vee-Notcher (Sab × Sab × |
105 × 105 × 15 |
|
|
Loj v-astcher (sab × sab × t) |
145 × 145 × 15 |
|
|
Ua Haujlwm Qhov Siab |
975 |
|
|
Cov cuab yeej tshwj xeeb |
Ib Leeg Vuag Xovxwm Nres (W × T) |
250 × 24 |
|
Multi Vee Xovxwm Nres (W × t) |
700 × 8 |
|
|
Yeeb nkab nqis los ua ke |
⌀100 |
|
|
Lwm tus |
Tshuab Dimension (L × W × h) (hli) |
3000x1440x2400 |
|
Fais Fais Fab (Kw) |
18 |
|
|
LUJ CEEB TEEB (KGS) |
12800 |
|
